What is it for?
Feeding bowls are designed to contain the different parts which are inserted randomly. They are joined firmly to the vibrating ‘motor’ underneath.
Do you need to find out which bowl to use for your parts? Check with our free test service.
All the different models, from the 225 mm diameter to the 1480 mm diameter, contain a spiral shaped track, starting from the bottom area and ending at the top.
The orienting of the parts can take place by means of different methods and it requires experience, professional skills and talent. In order to choose structure and materials for the most suitable bowl, different factors must be taken into consideration on the basis of the parts to be oriented. In Gasco Group we can decide, even only from drawings or images of the parts, which is the right bowl for your machinery.
How and why to choose it?

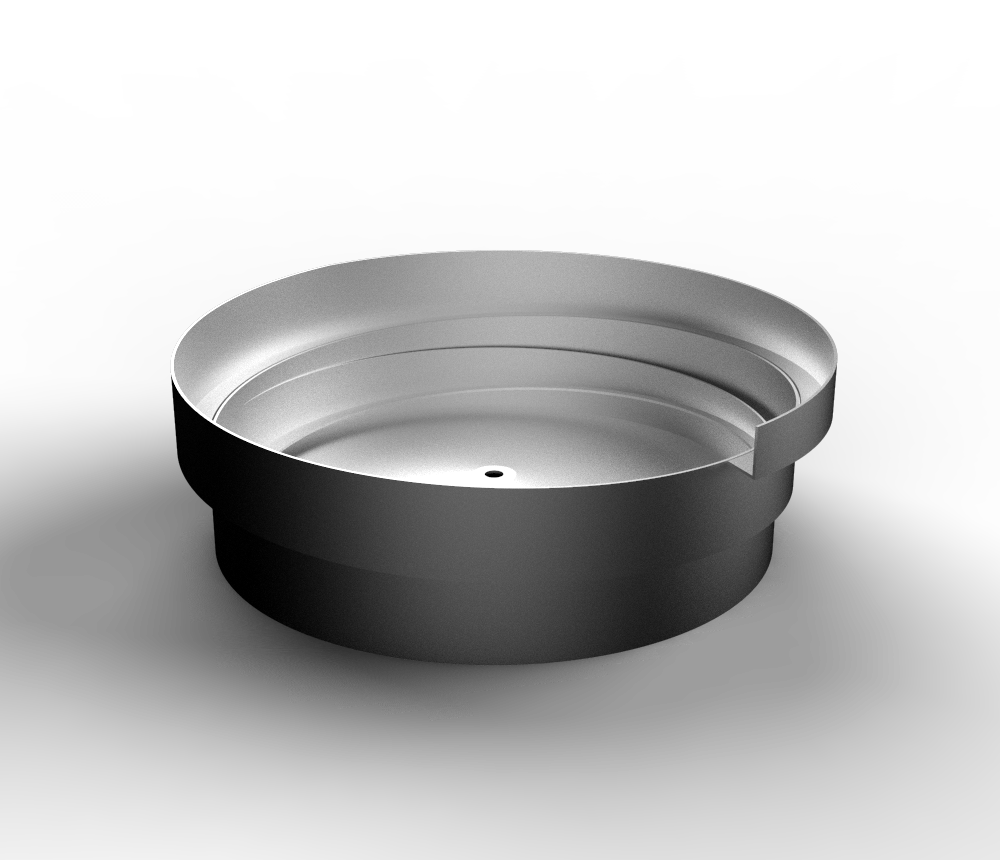

Stepped bowls allow, due to their special design, high loading volumes without the risk of entanglement between part and coils.
Compared to cylindrical and conical bowls, they allow higher conveying speed and frequency.
Customised manufacturing, with internally sloped tracks for particular parts to be oriented, is possible. They are ideal for pipe fittings, taps, thermo-hydraulics and medium-big heavy parts.
Do you need to know how many parts a stepped bowl can contain? Contact us and we will reply promptly!
Technical features
Material and customising
All our standard bowls are manufactured in AISI 304 stainless steel, but they can also be in AISI 316, manganese steel or with screwed tracks in C75 steel.
The standard finishing consists of an internal and external micro shot-blasting, but also manual polishing or certified electropolishing can be performed. Internal coatings may also vary, these can be both glued or sprayed coatings with wear-resistant, sound-resistant and oil-proof materials.
With regards to food or medical fields the tracks can be seam welded with relevant certificate. The bowls can be manufactured in dedicated and special sizes (external diameter, coil width and pitch).
They can also be modified to be used on other brands drive units.
CLOCKWISE
ANTICLOCKWISE
Scroll to see all the data in the table
NB To access the DWG and STEP files you must first sign in and make the login to download them in the section 3D Download.
Models BV46, BV56, BV66 (three-magnet units) have different total heights, to be taken into consideration according to the unit characteristics.
For more information, see our catalogue.
Each bowl can be combined to a different drive unit:
