What is it for?
Our VL linear feeders are used to convey parts usually oriented. One or more driving channels can be mounted on them, to convey the oriented parts along a precise and definite path.
These are often used between the outflow of circular bowls and the pick-up and handling area of the automated machinery. In this case they serve as buffers, to guarantee the machinery a constant and regular feeding.
Need help? Write to us here!
Why choose it?
Our linear feeders produce smooth vibrations to guarantee a continuous flow of parts with little or no bouncing.
Thanks to our controllers, the speed can be changed even during operation (manually o by means of PLC) .
• Zero maintenance, when in a clean environment
• Prompt delivery, just a few days, even for batches and immediate availability of spare parts;
• Easy calibration and frequency setting;
• Load resistant and constant set speed.
Linear vibratory feeders – VL series
Materials and customising
Our linear feeders are designed, manufactured and mounted solely by our qualified personnel. Components (magnets and leaf springs) and manufacturing are fully guaranteed and certified as ‘Made in Italy’.
We use resin coated electromagnets which are designed for top performance, guaranteeing an even vibration, even when the load varies. Our leaf springs are certified and made of high resistance fibre composite materials.
The supply voltage is 230V/50Hz single-phase, but they can be supplied with different voltages and frequencies, or in UL version, with shielded cable.
To be combined:
• Fixed or variable frequency controller
• Dynamic or static hoppers
• Supports
• Level indicators
Scroll to see all the data in the table
NB: To access the DWG and STEP files you must first sign in and make the login to download in the selection 3D Download.

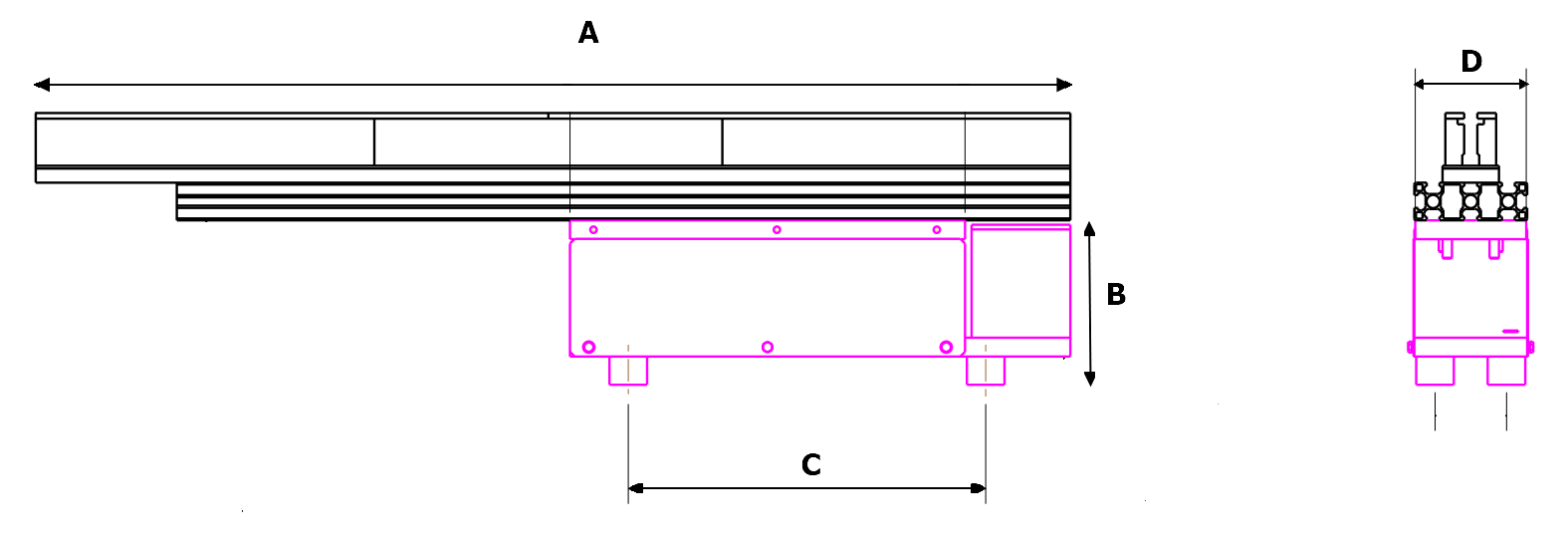

* Size “C” in based on the number of counterweights. For more information, check our catalogue.
